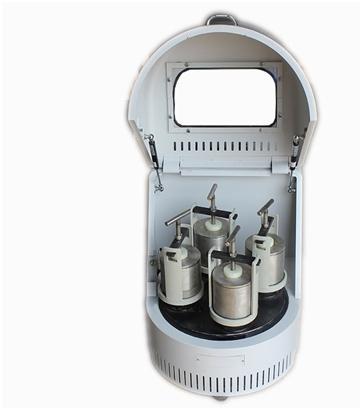

Lab Planetary Ball Mill

Lab Planetary Ball Mill
Lab Planetary Ball Mill
Product Code : planetary-ball-mill
Product Description

We are a reputed name, which is engage in trading and supplying of a qualitative Lab Planetary Ball Mil. Our vendors have manufactured the offered mill in accordance with the set industry standards and norms. It is suitable for the colloidal grinding and provides the energy input for mechanical alloying.



Type /Model : XQM-1-A

1 mill tank volume :250ML

Voltage : 220V

Machine Size : 760*490*570mm

Machine Weight : 70kg for only the machine weight

Work mode: 2 or 4 jars working together

Mill mode: Dry/Wet milling

Speed Frequency: Adjusting

Drive Mode: Gear drive

Rotational Speed: 0-670 r/min, adjusting

Revolution: rotation : 1:2

Material Capacity : Material + mill balls < 2/3 volume

Input Granularity Size

< 10mm for soft material,

< 3mm for hard material

Output Granularity Size the minimum 0.3um

Field of application

  • Geology, Mining, Metallurgy, Electronics,

  • Construction Material, Ceramics, Chemical

  • Engineering, Light Industry Medicine,

  • Environmental Protection etc.


  • Soft,hard,brittle,fibrous,cellulose,herb,glass,soil ,ore,pharmacy,chemical,flourecent,pigment.

Type of grinding jars

  • Stainless steel, zirconia, alumina, nylon, PU,tungsten,PTFE etc,vacuum jars are available as well.

Type of grinding medium:

  • Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.

Max. continuous operating time(full-load): 72 hours

Interval operation : Yes, with direction reversal

Drive 1-phase 220V motor with frequency converter

Certificate: ISO 9001. CE certificate for frequency converter and Motor.

Mill pot

  • Stainless steel,Nylon,Zirconium,Agate,Alumina,PTFE,PU,Tungsten Carbide,etc. Most kinds can

  • be made into vacuum jars.

Mill balls

Materials of balls for choosing:

  • Stainless steel,Agate,Zirconium,Aluminum,carbon steel,PU,Tungsten Carbide,etc.

  • Sizes for choosing: 1mm,3mm,5mm,8mm,10mm,15mm,20mm,25mm.
